FEP M-1 (Molding Grade)
Perfluoroethylene-propylene resin (FEP)
- Optimal Melt Flow Index ：MFR: 0.8~2.0 g/10min
- Provides excellent wear resistance and material durability
- High-performance dielectric properties for demanding electrical applications
- Exceptional stability against heat and harsh chemical environments
Technical Specifications
Item | Unit | M-1 | Test Method |
|---|---|---|---|
Appearance | / | Translucent Particle | / |
Melting Index (MFR) | g/10min | 0.8-2.0 | ASTM D2116 |
Breaking Tensile Strength | Mpa | ≥28.0 | ASTM D638 |
Elongation at Break | % | ≥300 | ASTM D638 |
Melting Point | ℃ | 265±10 | ASTM D3418 |
Density | / | 2.12-2.17 | ASTM D792 |
Dielectric Constant（106Hz） | / | ≤2.15 | ASTM D150 |
Dissipation Factor（106Hz） | / | ≤7.0×10-4 | ASTM D150 |
Main Application

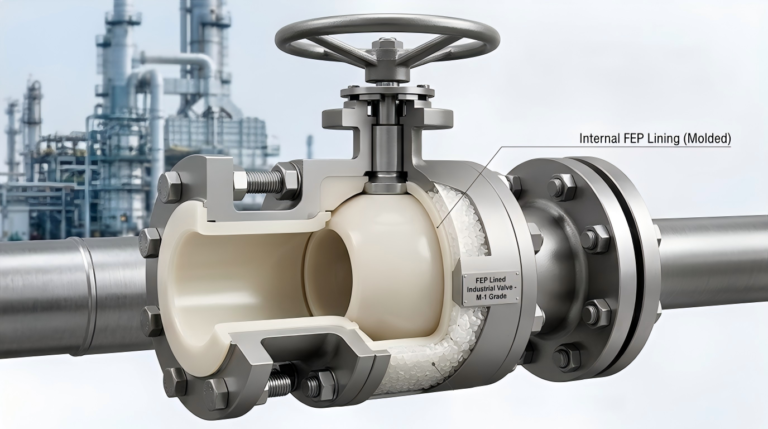

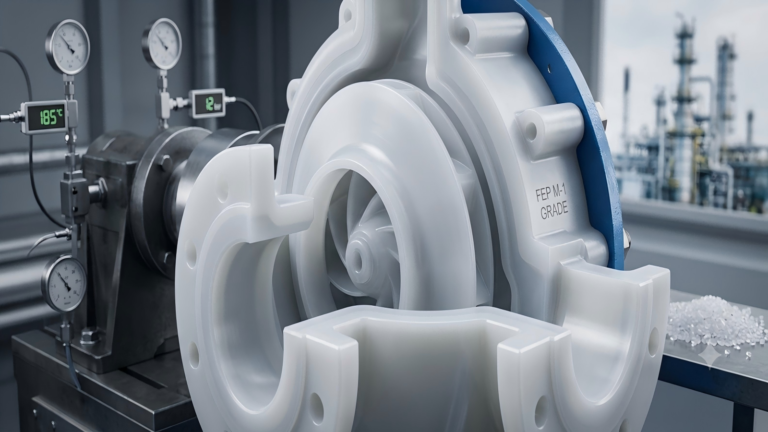

High-molecular-weight, low-melt-flow-index resins, as well as heat stress crack resistant molding resins, are mainly used for linings of pumps, valves, pipelines and other components.
Packaging, Transportation and Storage
Package:
N.W.25kg/bag
1.It should be stored in a clean, dry, cool and light-shielded environment to prevent contamination by impurities.
2.Non-toxic, non-flammable, non-explosive and non-corrosive, it shall be transported as a non-dangerous good.
