FEP EW-5 / 6 (High-Speed Thin-Wall)

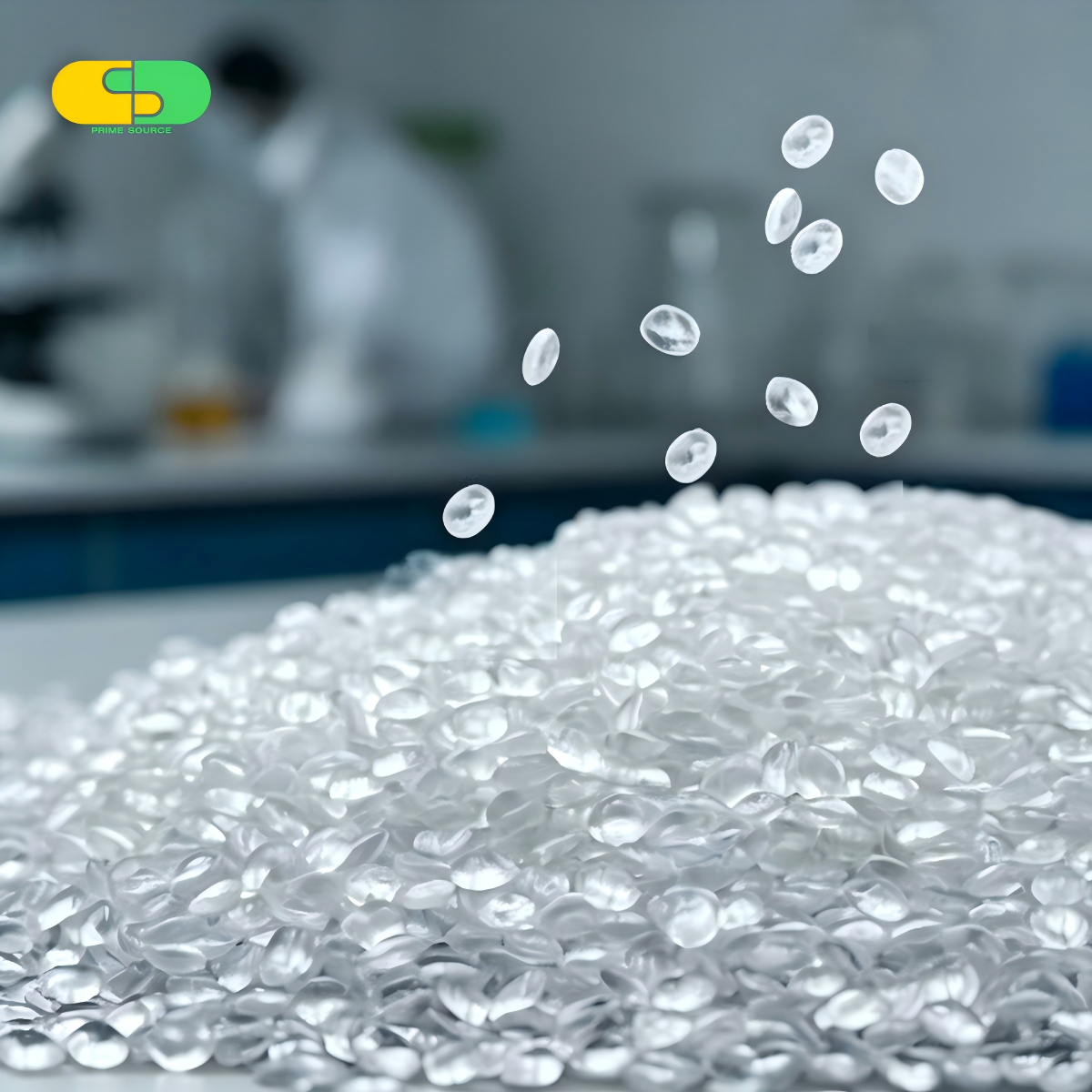

Perfluoroethylene-propylene resin (FEP)
- Optimal Melt Flow Index ：MFR: 20.1~30.0g/10min
- Ideal for thin-wire and high-speed cable applications
- Stable thermal performance for seamless processing
- Outstanding dielectric properties and chemical resistance
Technical Specifications
Item | Unit | EW-5 | EW-6 | Test Method |
|---|---|---|---|---|
Appearance | / | Translucent Particle | Translucent Particle | / |
Melting Index (MFR) | g/10min | 20.1-27.0 | 27.1-36.0 | ASTM D2116 |
Tensile Strength | Mpa | ≥18.0 | ≥18.0 | ASTM D638 |
Elongation at Break | % | ≥280 | ≥280 | ASTM D638 |
Melting Point | ℃ | 255±10 | 255±10 | ASTM D3418 |
Relative Gravity | / | 2.12-2.17 | 2.12-2.17 | ASTM D792 |
Dielectric Constant（106Hz） | / | ≤2.15 | ≤2.15 | ASTM D150 |
Dissipation Factor（106Hz） | / | ≤7.0×10-4 | ≤7.0×10-4 | ASTM D150 |
Main Application

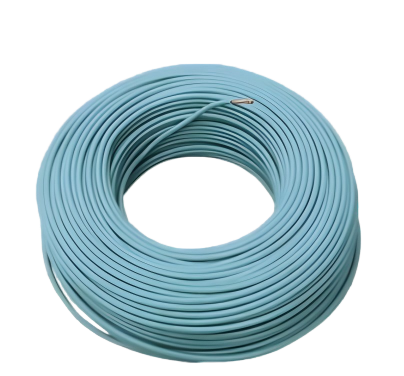

EW-5：Extruding material, mainly used for the insulation and jacket of high speed and thin wire & cable.

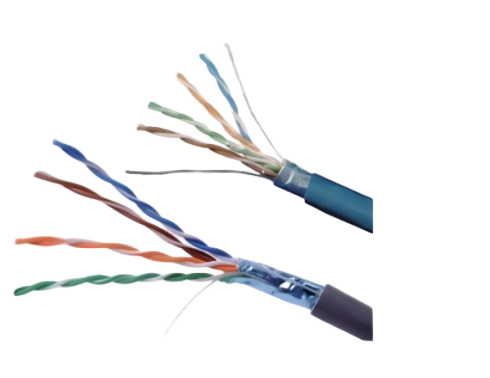

EW-6：Extruding material, mainly used for the insulation of high speed and thin wire and cable.
Packaging, Transportation and Storage
Package:
N.W.25kg/bag
1.It should be stored in a clean, dry, cool and light-shielded environment to prevent contamination by impurities.
2.Non-toxic, non-flammable, non-explosive and non-corrosive, it shall be transported as a non-dangerous good.
